Day 9

Advent of Code: Worked Solutions

Setup

Import libraries:

library(tidyverse)
library(unglue)
library(sf)

Read text input from file into a data frame of X-Y coordinates:

input <- read_lines("../input/day09.txt") |>
  unglue_data("{x},{y}", convert = TRUE) |>
  mutate(id = row_number())

Part 1

Compute the area of the rectangle formed by every pair of coordinates:

combn <- cross_join(input, input, suffix = c("1", "2")) |>
  filter(id1 < id2) |>
  mutate(
    w = abs(x2 - x1) + 1,
    h = abs(y2 - y1) + 1,
    area = w * h
  )

Pull the largest area:

combn |>
  pull(area) |>
  max()

Part 2

Convert tiles to a polygon:

polygon <- input |>
  rbind(head(input, 1)) |>
  pmap(\(x, y, ...) c(x = x, y = y)) |>
  reduce(rbind) |>
  list() |>
  st_polygon()

polygon_buffer <- polygon |>
  st_buffer(dist = 0.5, joinStyle = 'MITRE', mitreLimit = sqrt(2))

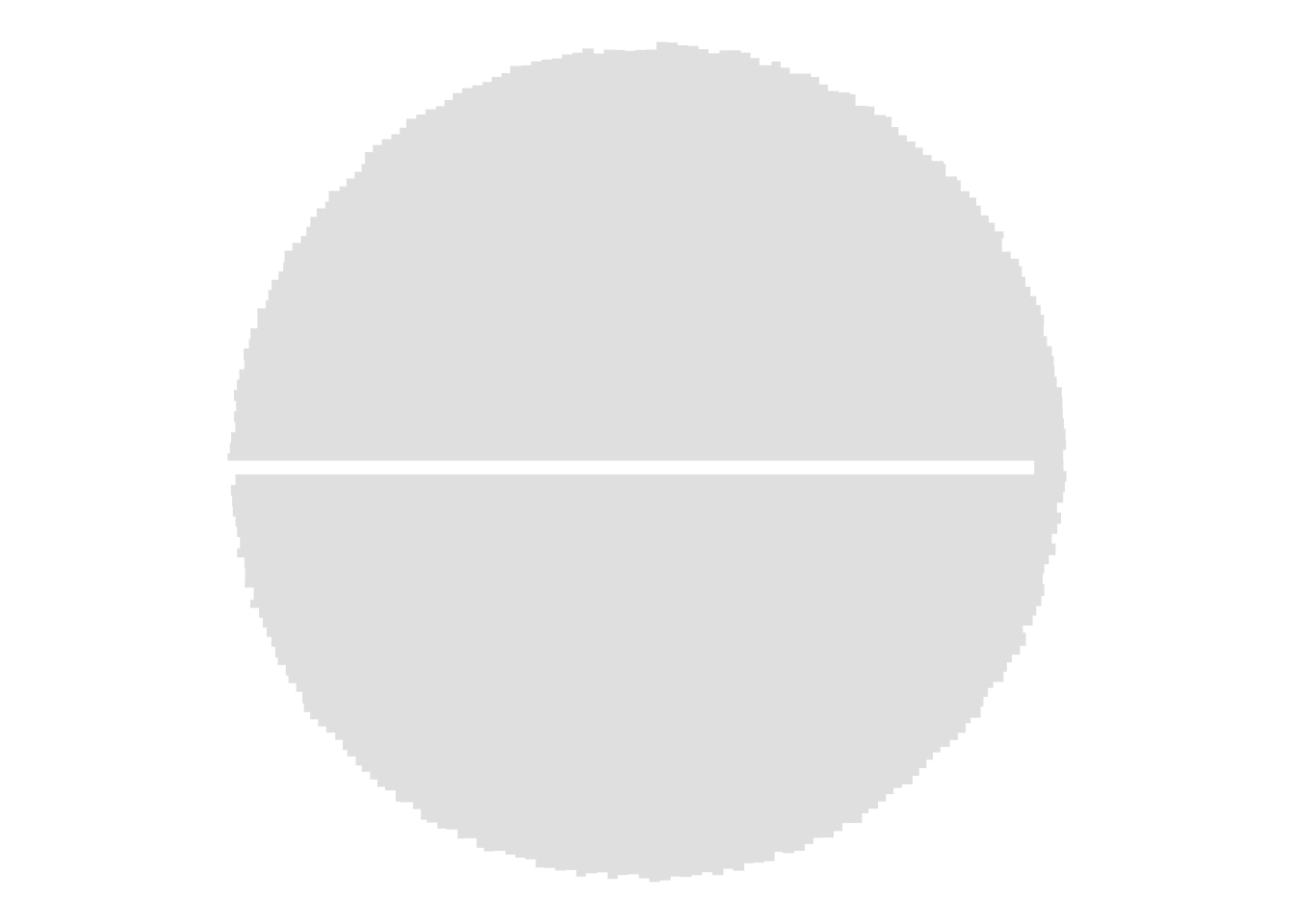

Graph the polygon:

polygon |>
  ggplot() +
  geom_sf(color = NA) +
  theme_void()

For each rectangle formed by a pair of corners, create an sf object.

combn <- combn |>
  filter(x1 != x2 & y1 != y2) |>
  mutate(
    rect = pmap(lst(x1, x2, y1, y2), \(x1, x2, y1, y2) {
      st_polygon(list(rbind(
        c(x1, y1),
        c(x1, y2),
        c(x2, y2),
        c(x2, y1),
        c(x1, y1)
      )))
    })
  ) |>
  arrange(desc(area))

In descending order of area, check if each rectangle is fully contained within the polygon, quitting once the largest valid rectangle is found:

valid_idx <- NA

for (i in 1:nrow(combn)) {
  if (st_contains(polygon_buffer, combn$rect[[i]], sparse = FALSE)) {
    valid_idx <- i
    break
  }
}

combn$area[[valid_idx]]

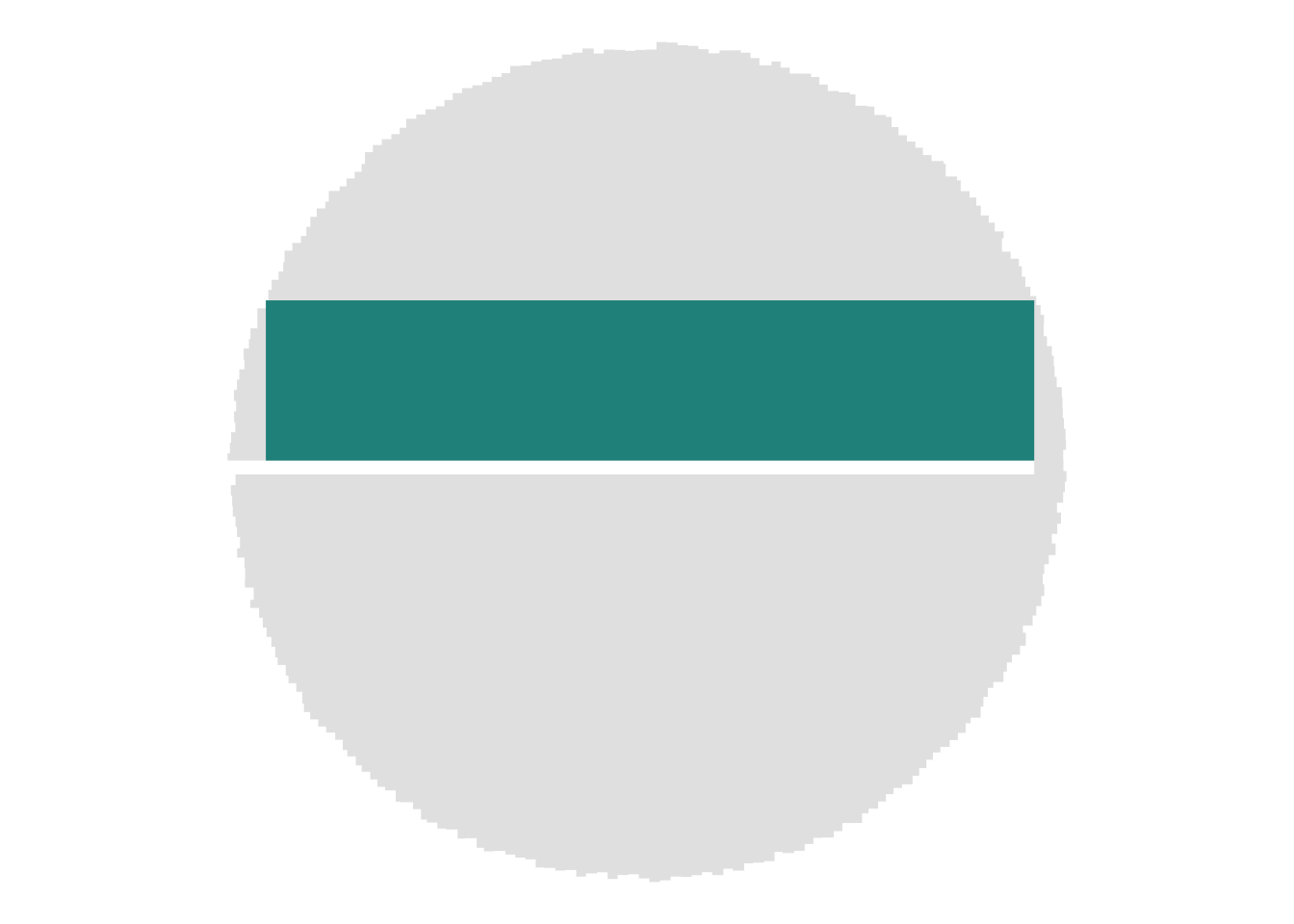

Plot the result:

ggplot() +
  geom_sf(data = polygon, color = NA) +
  geom_sf(data = combn$rect[[valid_idx]], fill = "#21918c", color = NA) +
  theme_void()
